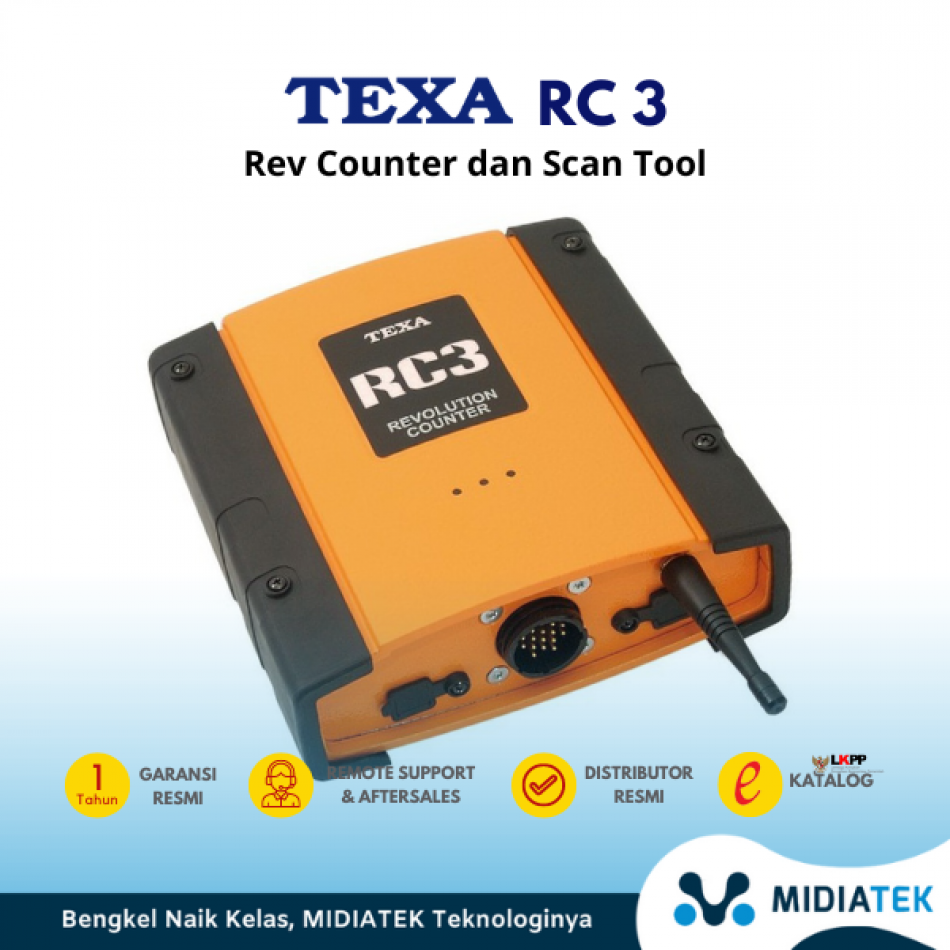

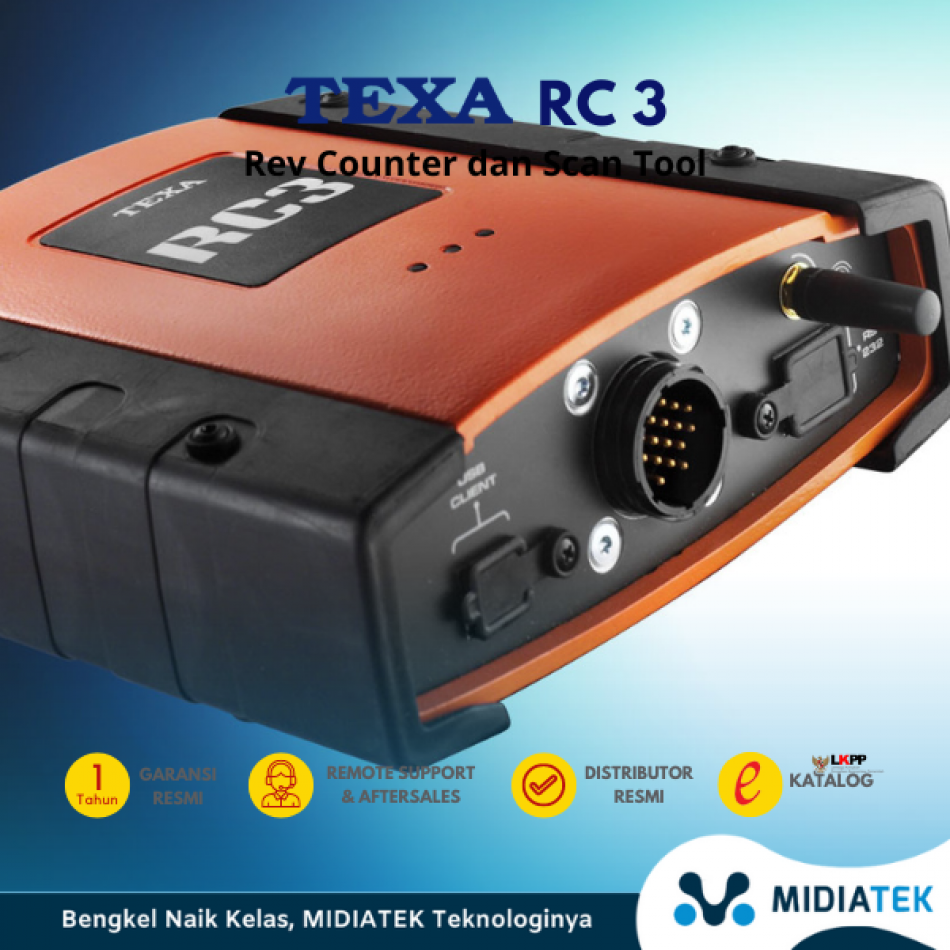

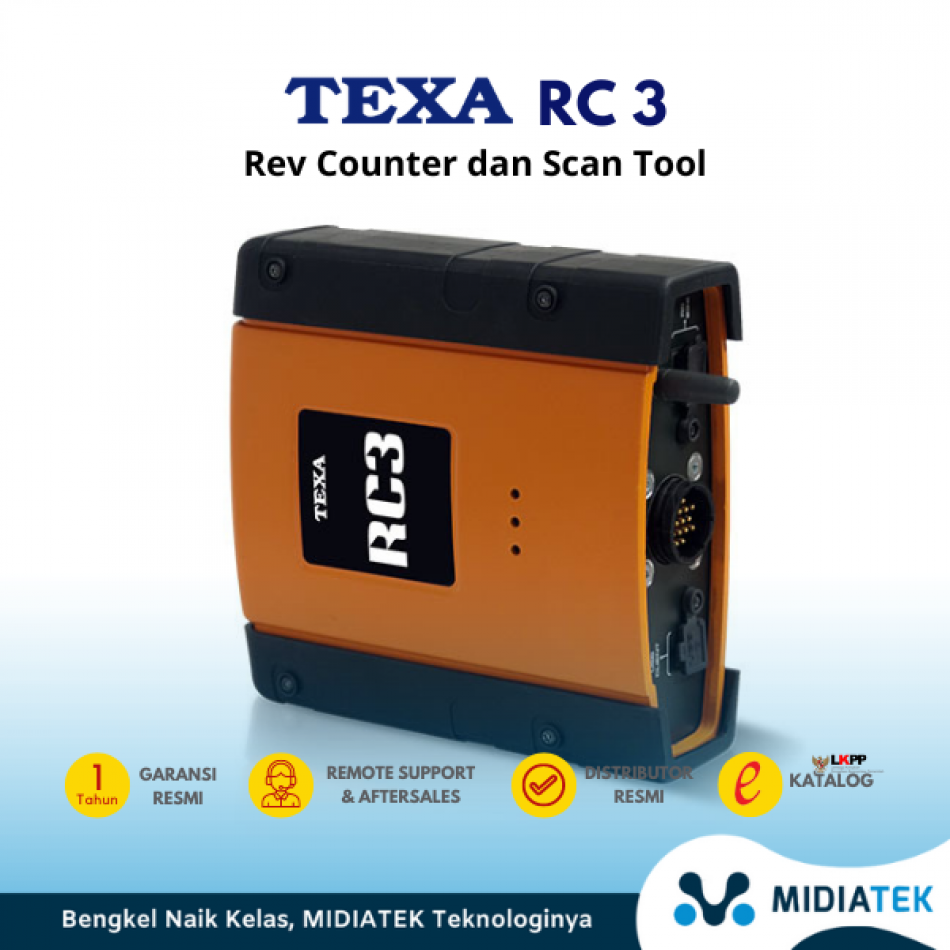

TEXA RC3 Rev Counter dan Scan Tool TEXA RC3 not only keeps engine speed and temperature under constant control but also functions as an ECU diagnostic tool. Therefore, it allows mechanics to perform two types of tests using only one tool. The RC3 (Revolution Counter 3) interface can read data in three different ways: using an induction clamp with a piezoelectric sensor, using a microphone with a battery residue signal, or directly from the OBD socket (on vehicles with available protocols).

When plugged into the OBD socket to measure engine speed and temperature, the RC3 reads data directly using the EOBD protocol, eliminating the need to open the engine hood. RC3 can also be used in scan-tool mode; connected to the EOBD socket, it can read the parameters specified by the standard in accordance with the new emission control procedures.

SPESIFIKASI
PROCESSOR SYSTEM
MB90F591 16MHz

SERIAL RESOURCES
1 1.1 USB Connection
1 RS232 standard connection

EXTERNAL POWER SUPPLY
8 ÷ 32 Volt

WIRELESS CONNECTION
1.2 Bluetooth technology

PETROL AND DIESEL DETECTION FROM VEHICLE BATTERY
12VDC and 24VDC Systems management

PETROL ANALOGUE DETECTION
Amp clamp

DIESEL ANALOGUE DETECTION
Piezoelectric sensor

EOBD DETECTION
ISO9141-2 ISO14230 SAE J1850 PWM SAE J1850 VPW CAN ISO11898

ENVIRONMENTAL
Operating temperature: -5°C ÷ +40°C
Operating moisture: 10% ÷ 80% without condensation
Storage temperature: -20°C ÷ +60°C

DIMENSIONS
155x162x63 mm

WEIGHT
800 g

Free Training Online

Training Online Lewat Youtube MIDIATEK

This is a wider card with supporting text below as a natural lead-in to additional content. This content is a little bit longer.

Frequently Asked Questions

TEXA RC3 Rev Counter dan Scan Tool


Rp 18.150.000
